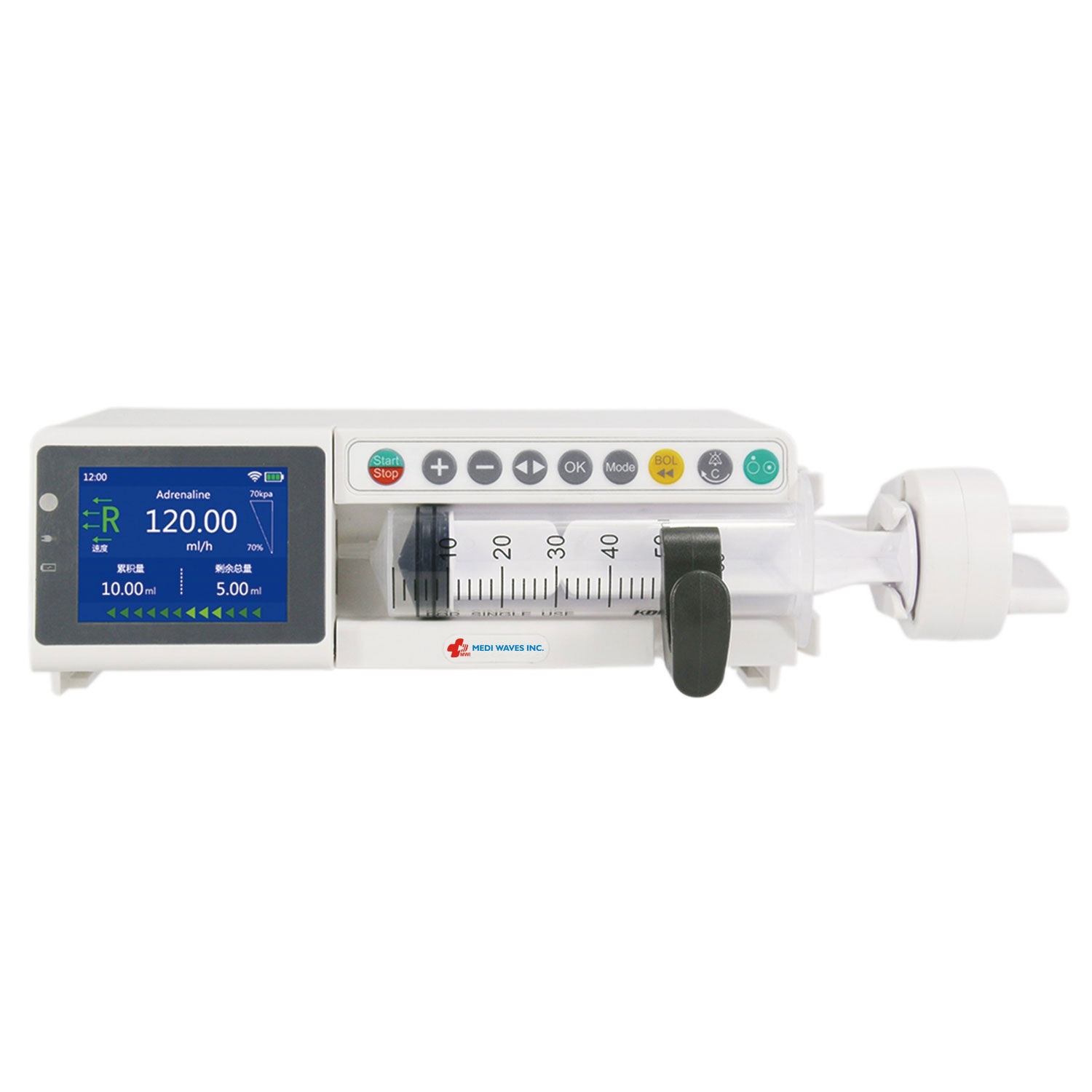

HK-400 Syringe Pump
Description
Quick Mount : One click to install on the pump pole. No screw needed.
Power Adapter : External power supply to reduce risk of power module overheating.
Information : Download setting and upload therapy data via WiFi.
Language : Multiple languages supported.
Tech Details
| Specification | |
| Syringe Size | 2ml, 5ml, 10ml, 20ml, 30ml, 50/60ml. |
| Volume Range | 0.01 ∼ 9999.99ml, step by 0.01ml. |
| Flow Rate Range | 2ml : 0.01 ∼ 100ml/h; 5ml: 0.01 ∼ 150ml/h; 10ml: 0.01 ∼ 400ml/h; 20ml : 0.01 ∼ 600ml/h; 30ml : 0.01 ∼ 1000ml/h; 50/60ml : 0.01 ∼ 2100ml/h. |
| Accuracy | ±2% |
| Bolus Rate | 2ml Syringe : 100ml/h; 5ml Syringe : 150ml/h; 10ml Syringe : 400ml/h; 20ml Syringe : 600ml/h; 30ml Syringe : 1000 ml/h; 50/60 ml Syringe : 2100ml/h. |
| KVO Rate | Flow rate ≥ 10ml/h : KVO rate 3ml/h Flow rate ≥ 1ml/h and < 10ml/h : KVO rate 1ml/h Flow rate < 1ml/h : KVO rate = Flow rate |
| Alarm | Battery exhausted alarm, Low battery alarm, Near end alarm, VTBI finished alarm, Incorrect syringe handle installation alarm, Syringe size error, Plunger error, Pause overtime alarm, Occlusion alarm, Malfunction alarm, A.C. and D.C. Off. |
| Occlusion Pressure | Maximum 130 kPa, Minimum 26 kPa. 9 adjustable setting |
| Power Adapter | A.C. Input power 100V ∼ 240V 50/60 Hz ; D.C. output power 15V / 2A. |
| Lithium Battery | Nominal Voltage : 10.8V ; Device can work over 6 hrs. on battery. |
| Infusion Pump Input Power | D.C. 15V |
| Power | < 55VA |
| Classification | Class II, Type CF, IPX2. |
| Weight | 1.5 Kg. |
| Dimension | 270 x 140 x 80mm (W x D x H) |
MX Infusion Workstation
Description
- Relayed Infusion Continuous infusion therapy with infusion relay.
- Data Analysis Statistical analysis on flow rate, dosage, volume and etc.
- Graphic presentation of analysis data.
- Help to improve therapy quality.
- 7 – inch Display Built-in pad based on the most advanced Android OS.
- 0.25m² Stackable design, save valuable spaces.
- Take as little as 0.25m².
Portable : With Quick handle, the pump works seamlessly between Workstation and portable configuration.
ICU Suspension Arm : Compatible with ICU suspension arm. Save floor space.
Centralized Monitoring : With Built-in wireless router, the MX infusion Workstation, MI-20 and MS-31 communicate via a high speed local network.
Power Adapter : One power supply to save power outlet for stackable configuration.
Tech Details
| Specification | |
| Compatible Pumps | MI-20 Infusion Pump, MS-31 Syringe Pump. |
| Pump Amount | 3, 4, 6, 7, 8, 9, Pcs. |
| Dimension and Weight | 3 Pcs : 243 x 125 x 345 mm (W x D x H), 1.6kg. 4 Pcs : 243 x 125 x 427 mm (W x D x H), 1.86kg. 6 Pcs : 243 x 125 x 590 mm (W x D x H), 2.45kg. 7 Pcs : 243 x 125 x 672 mm (W x D x H), 2.71kg. 8 Pcs : 243 x 125 x 754 mm (W x D x H), 2.97kg. 9 Pcs : 243 x 125 x 835 mm (W x D x H), 3.2kg. |
| Pump Pole Dimension | 520 x 540 x 1600 mm (W x D x H). |
| Pump Pole Weight | 8.2 Kg. |
| Hardware | Computer with 7-inch screen (optional) |
| Screen Size | 7 Inch |
| Power Adapter | A.C. Input power 100V ∼ 240V 50/60 Hz; D.C. output 15V / 2A. |
| Power | < 20VA |
| Classification | Class I, Type CF, IPX1 |
