Phototherapy Unit P-003DX
Description
- Phototherapy based on LED technology, which after filtering provide, a light of wavelength approximately 450 to 470 nm with peak wavelength of 450-460nm range.
- Irradiance minimum 35 µW/cm2/nm at 40 cm height and UV not exceed 10-4 W/m2 in 180nm to 400nm.
- Effective light field >700 cm2.
- Lamp life minimum 50000 hours for LED and has timer to indicate its usage.
- Each lamp unit provided Blue power LEDs emitting blue radiation between 450-480nm wavelengths for phototherapy.
- Digital Hour meter showing total exposure time for current patient clearly visible by operator.
- Over temperature safety cut out is included.
- Up, down and tilting of head is possible.
- The unit is mounted with castor wheels with brakes.
- Variation in intensity over 5-6 hours < 10%.
- The irradiance ratio (min to max) is greater than 40% on mattress.
- Green indicator light is provided to indicate that equipment is ready for normal use.
- Interruption and a restoration of the power supply does not change preset values. LED heat can be reduced by natural cooling.
- LED is protected from free fall.
- It does not topple on 10º inclined angle.
- The temperature of baby bed and metal surfaces does not exceed 40º and 43º for other accessible surfaces.
- There is intuitive method to indicate the light surface is at the appropriate treatment distance.

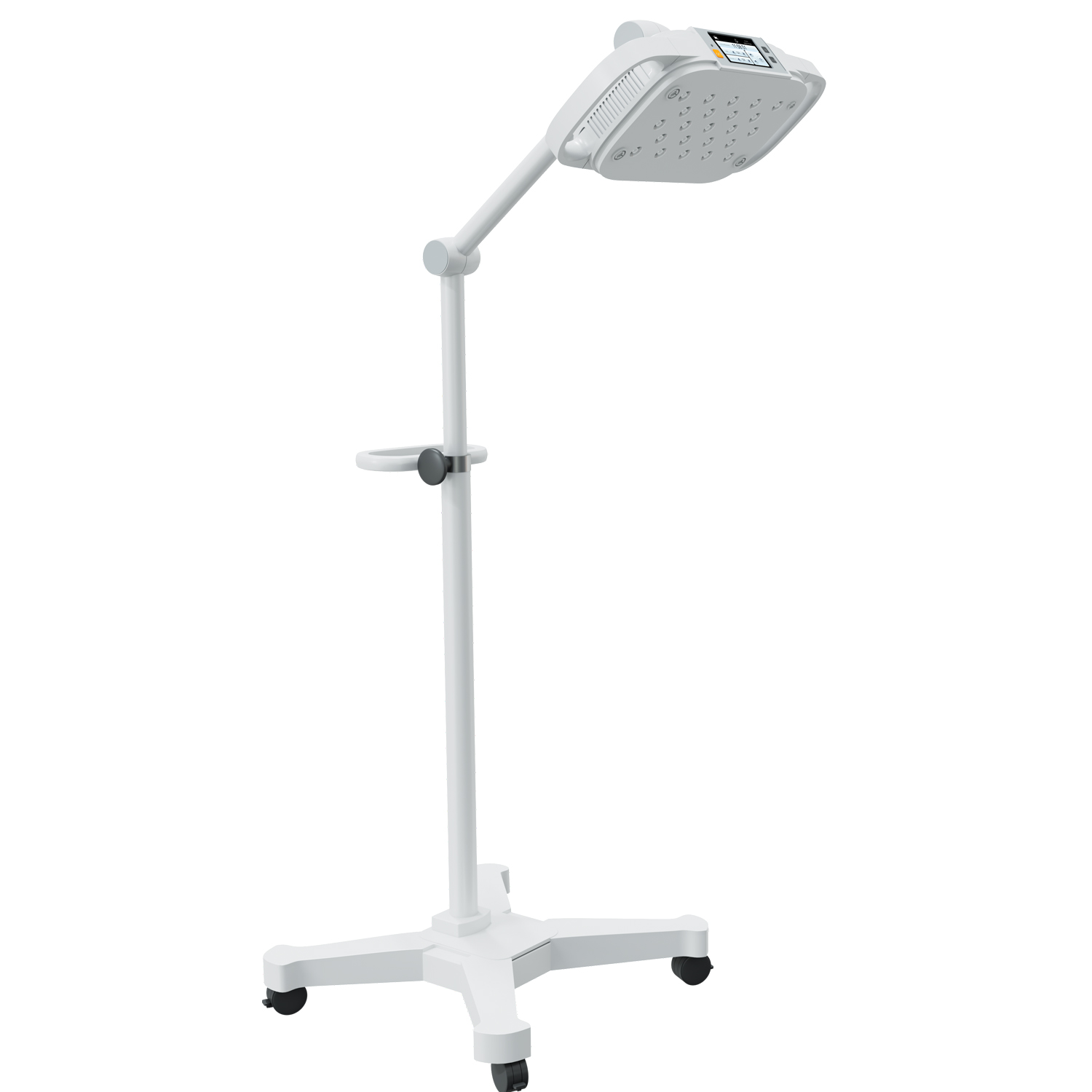

- Mobile stand with movable castors and height adjustment facility along with easy swiveling of source box. Unit can be used along with Infant care trolley, Radiant Warmer and Incubator.
- UP/DOWN adjustment of Over Head Unit; The phototherapy unit can be able to provide effective treatment for beds and incubators of varying heights (generally 1.0 to 1.6m). Adjustment of light intensity is provided.
- It meets IEC 60601-2-50 Medical Electrical Equipment PART 2-50: Particular Requirements for the Safety of Infant Phototherapy Equipment.
High-intensity Phototherapy
Efficient Jaundice Treatment
According to statistics, clinically 80% of pre-term and 60% of full-term infants are at risk of
hyperbilirubinemia.
Medi Waves LED Phototherapy Unit helps cure jaundice safely and efficiently with superior technology and
high-performance phototherapy.
Optional Bassinet
- Clear cabinet for observation of infant.
- Infant bassinet an integral unit which is detachable.
- Unit provides shielding of infant in the event of bulb breakage.
- Bulb mount has angle adjustment of at least 30 degrees.
- All surfaces made of corrosion resistant materials.
- Light unit tilting facility and height adjustment facility.
Optimal wavelength
The peak wavelength of the spectrum is 450 – 460 nm
and has been shown to be the most effective in reducing
unconjugated bilirubin; it also does not contain near-UV
wavelengths that are harmful to the skin. These made it
very suitable for the treatment of neonatal jaundice.
Longer service life
The service life is up to 50,000 hours, ensuring clinical usage and minimizing the cost for the end users.

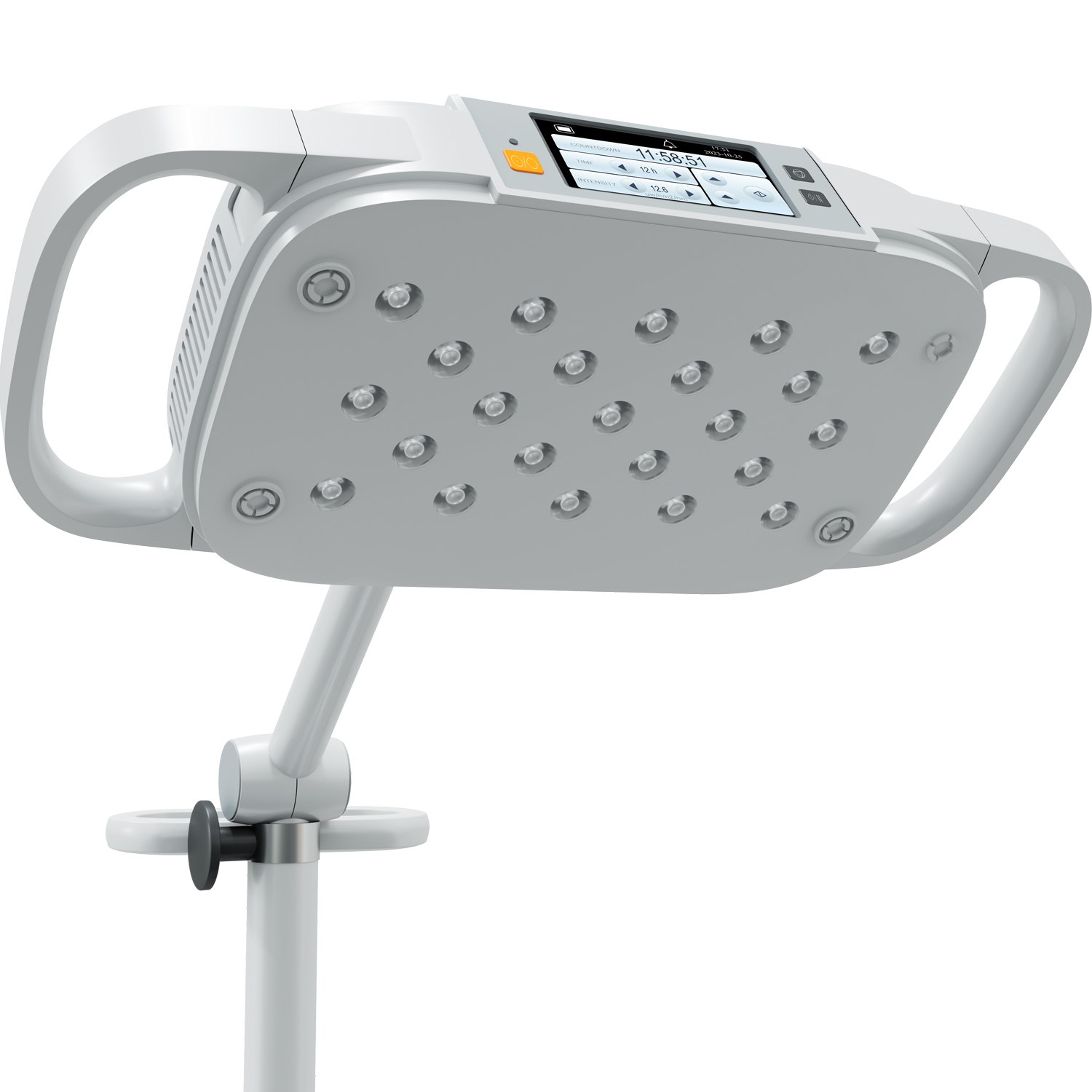

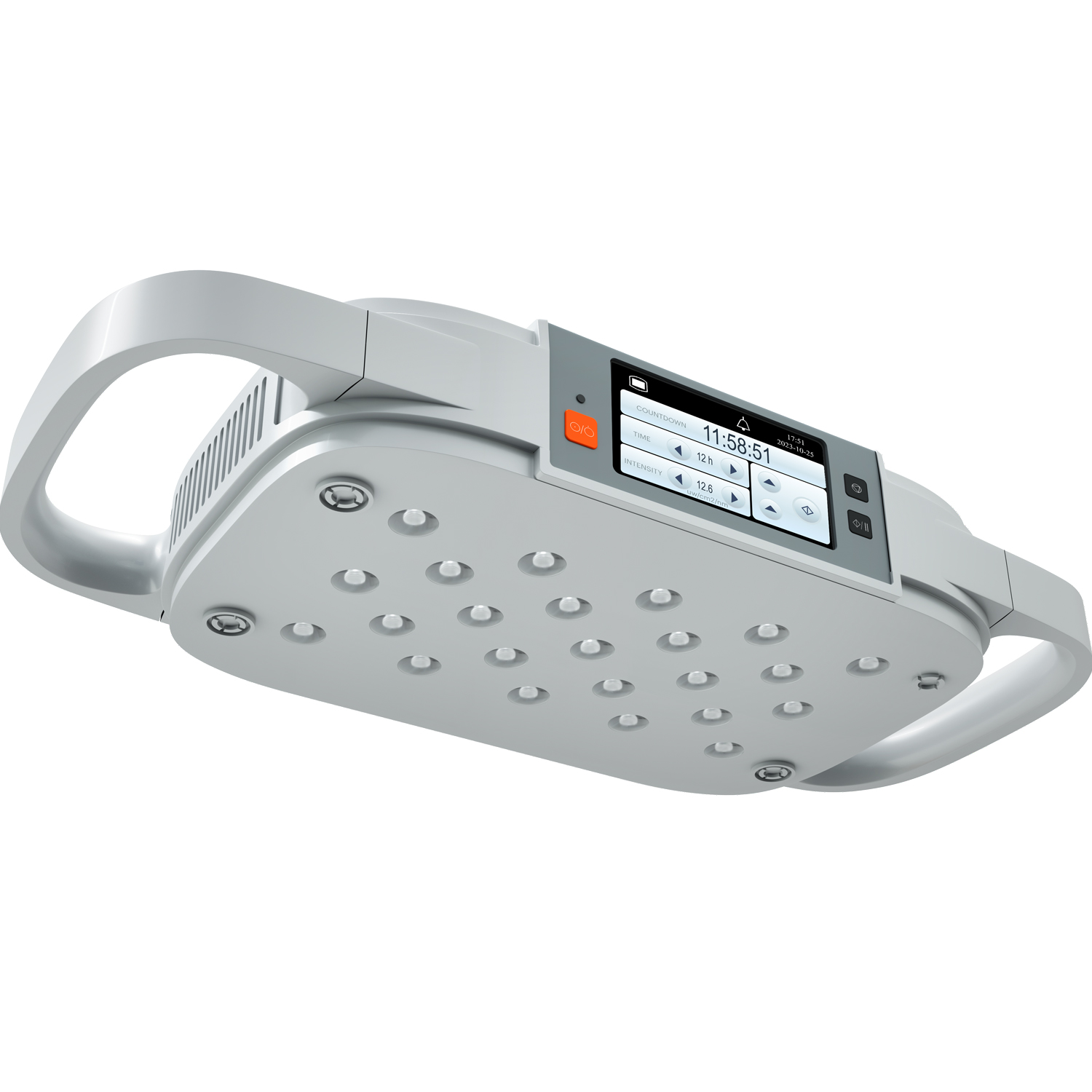

Uniform irradiance distribution
Our innovative optical design ensures uniform irradiance distribution, minimizes spill light and exposure, with LED light evenly covering the total body surface of the neonates to ensure the effect of phototherapy.
Precise Treatment for Neonatal Jaundice

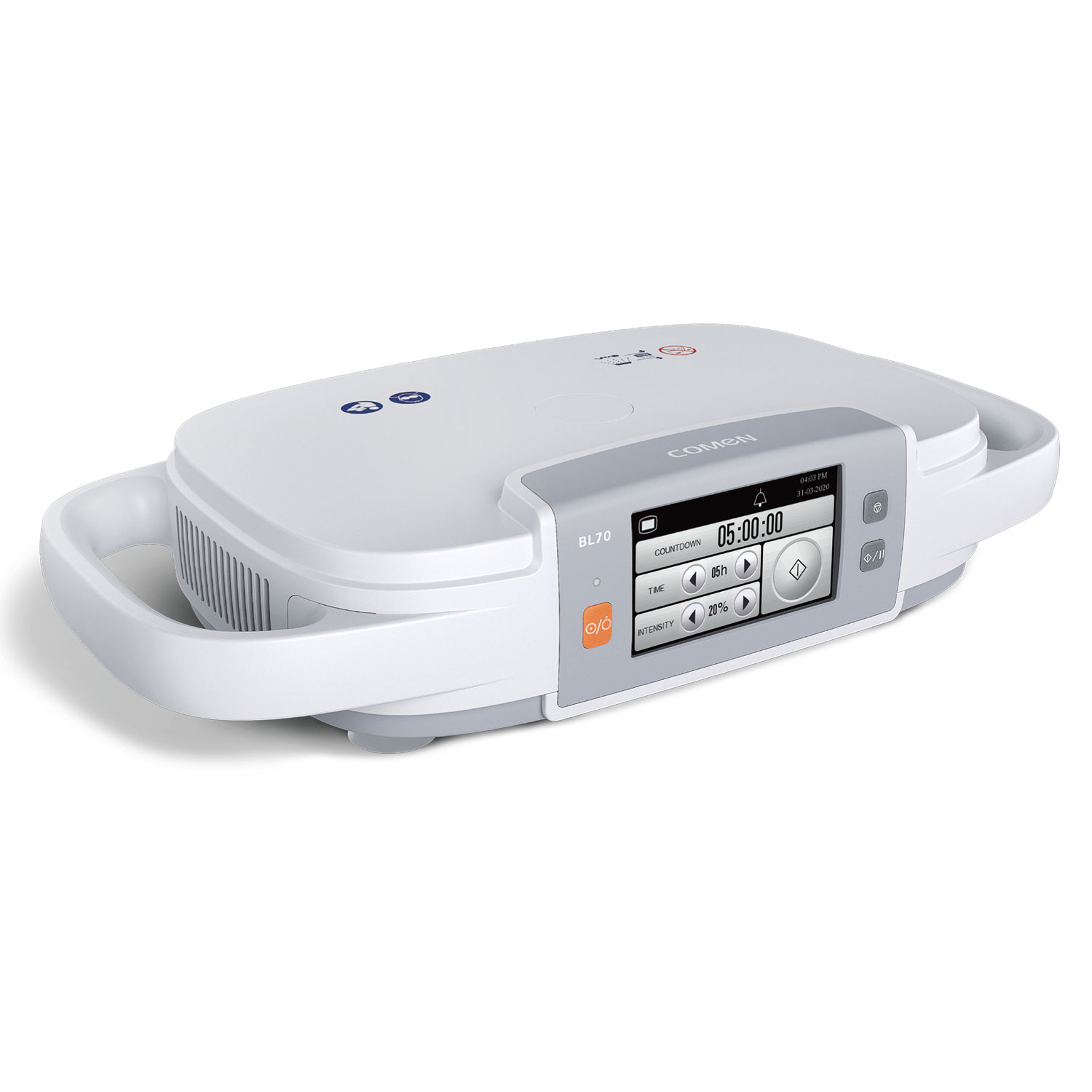

Equipped with a touch screen panel and digital hour meter to accurately track exposure time and ensure the baby receives the correct dose of phototherapy.

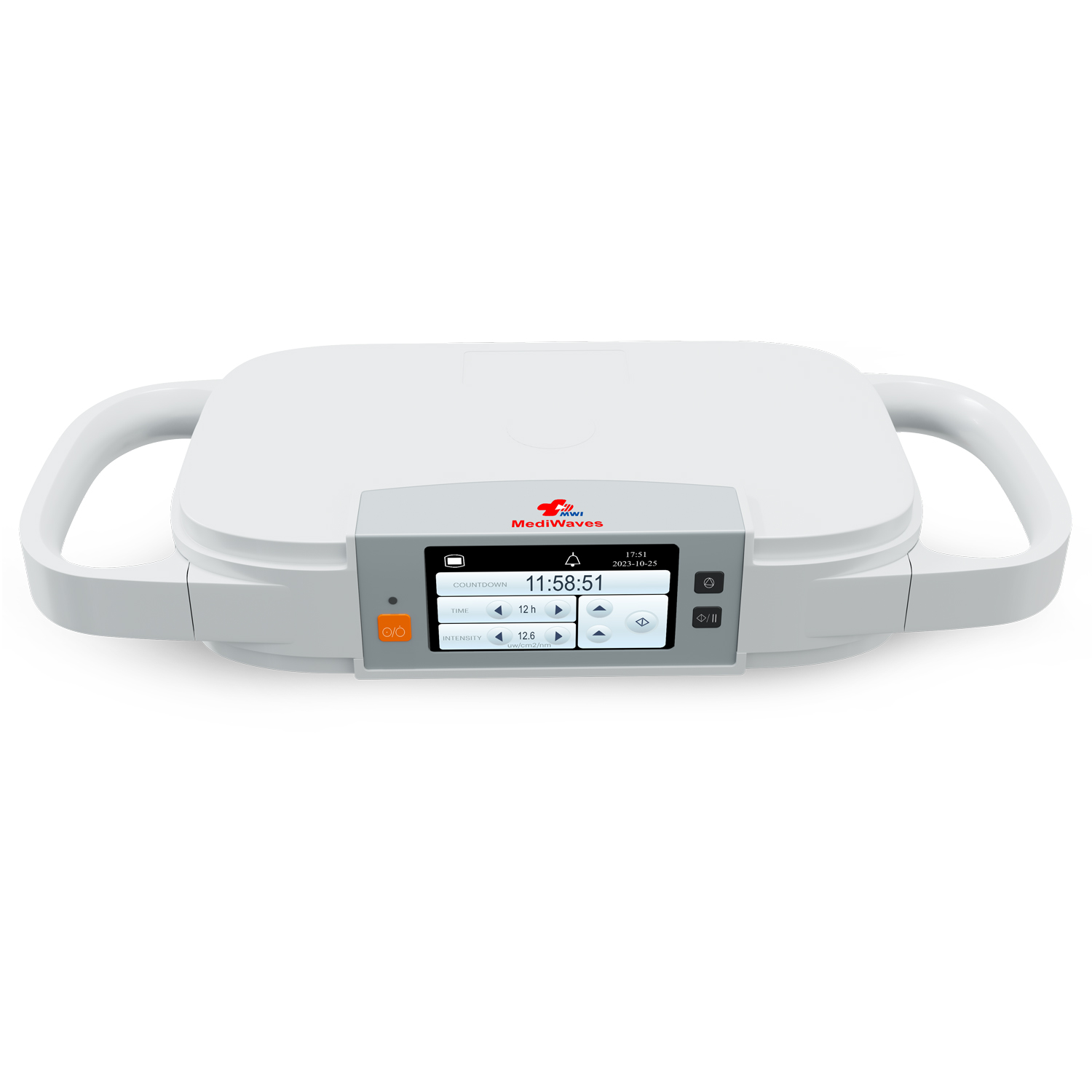

Touch screen panel
Digital hour meter shows total exposure time for the current patient, clearly visible to the operator.
Safety features
Over temperature safety cut-out is included. A green indicator light shows the equipment is ready for normal use, and interruption or restoration of power supply does not change preset values.
Ward round assistance
Mobile stand with movable castors and height adjustment allows the unit to be used alongside an Infant Care Trolley, Radiant Warmer, or Incubator during ward rounds.
